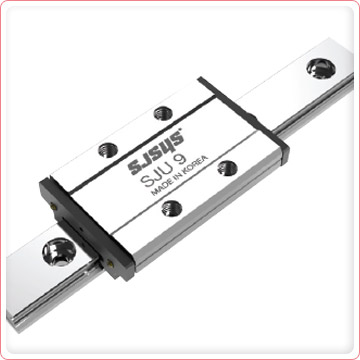

  • SJWSJU/SJUL

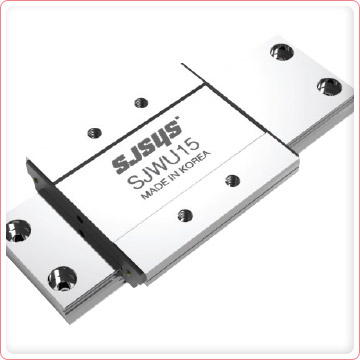

  • SJWU/SJWULSJWU/SJWUL

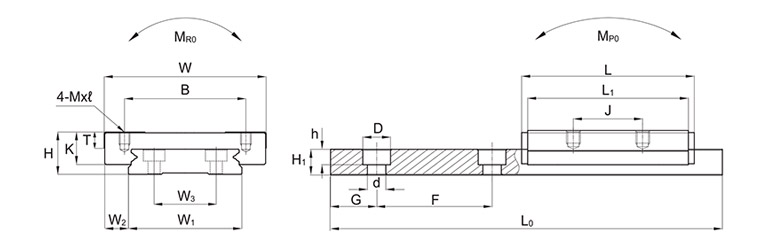

SJU/SJUL (Standard Limited type), SJWU/SJWUL (Wide Limited type)

SJU/SJUL (Standard Limited type), SJWU/SJWUL (Wide Limited type)

SJU/SJUL (Standard Limited type), SJWU/SJWUL (Wide Limited type)

Part no. Assembly dimensions Dimension of block
H E W2 Max.
stroke		 W L B x J M x l L1 T K
SJU 7 8 1.5 5 8 17 27.6 12x8 M2x2.5 25 3.3 6.5
SJUL 7 13 37.6 12x13 35
SJU 9 10 2.2 5.5 12 20 37.6 15x10 M3x3 35 4.5 7.8
SJUL 9 18 47.6 15x16 45
SJU 12 13 3 7.5 15 27 37.6 20x15 M3x3.5 35 5.5 10
SJUL 12 20 52.6 20x20 50
SJU 15 16 4 8.5 20 32 47.6 25x20 M3x4 45 6.5 12
SJUL 15 25 67.6 25x25 65
Part no. Dimension of rail Basic load rating Allowable static moment Mass
W1 H1 F D d h G Max.
length		 Dynamic(C)
N		 Staic(C0)
N		 MR0
N·m		 MP0
N·m		 MY0
N·m		 Block
kg		 Rail
kg/m
SJU 7 7 4.7 15 Φ 4.2 Φ 2.4 2.3 5 490 880 1370 0.3 0.3 0.5 0.010 0.23
SJUL 7 1590 2500 0.8 0.8 0.9 0.015
SJU 9 9 5.5 20 Φ 6 Φ 3.5 3.3 7.5 1195 1420 2900 1.06 0.52 0.52 0.013 0.32
SJUL 9 2597 3920 1.87 1.79 1.79 0.023
SJU 12 12 7.5 25 Φ 6 Φ 3.5 4.5 10 1195 2460 3626 1.5 0.82 0.89 0.029 0.59
SJUL 12 4214 6566 2.72 2.45 2.66 0.043
SJU 15 15 9.5 40 Φ 6 Φ 3.5 4.5 15 1190 4018 5978 3.80 1.68 1.83 0.052 0.99
SJUL 15 7154 10682 5.41 5.03 5.46 0.079

SJU/SJUL (Standard Limited type), SJWU/SJWUL (Wide Limited type)

Part no. Assembly dimensions Dimensions of block
H E W2 Max.
stroke		 W L B x J M x l L1 T K
SJWU 9 12 3.7 6 17 30 42.6 21x12 M3x3 40 4.5 8.3
SJWUL 9 27 62.6 23x24 60
SJWU 12 14 4 8 22 40 52.6 28x15 M3x3.5 50 5.5 10
SJWUL 12 32 70.6 28x28 70
SJWU 15 16 3.7 9 27 60 62.6 45x20 M4x4.5 60 6.5 12.3
SJWUL 15 37 82.6 45x35 80
Part no. Dimensions of rail Basic load rating Allowable static moment Mass
W1 H1 W3 F D d h G Max.
length		 Dynamic(C)
N		 Staic(C0)
N		 MR0
N·m		 MP0
N·m		 MY0
N·m		 Block
kg		 Rail
kg/m
SJWU 9 18 7.5 - 30 Φ 6 Φ 3.5 4.5 10 1190 2450 3920 3.67 1.66 1.66 0.03 0.99
SJWUL 9 3520 5370 4.94 3.10 3.10 0.05
SJWU 12 24 8.5 - 40 Φ 8 Φ 4.8 4.5 15 1190 4020 6080 4.86 1.75 1.9 0.05 1.42
SJWUL 12 5960 9210 9.1 4.73 5.39 0.10
SJWU 15 42 9.5 23 40 Φ 8 Φ 4.8 4.5 15 1190 6660 9800 13.91 3.6 3.9 0.12 2.93
SJWUL 15 9910 14900 25.5 9.73 11.0 0.21
